Figge-Fencl Quantitative Physicochemical Model
of Human Acid-Base Physiology (Version 3.0)
by James J. Figge, MD, MBA, FACP

Copyright 2003 - 2013 James J. Figge.
Published 8 October, 2012; updated on 28 April, 2013; updated on 27 October, 2013;
on www.Figge-Fencl.org and www.acid-base.org.


Titration Curve of Human Serum Albumin as Predicted by the Figge-Fencl Quantitative Physicochemical Model (Version 3.0)

titration curve

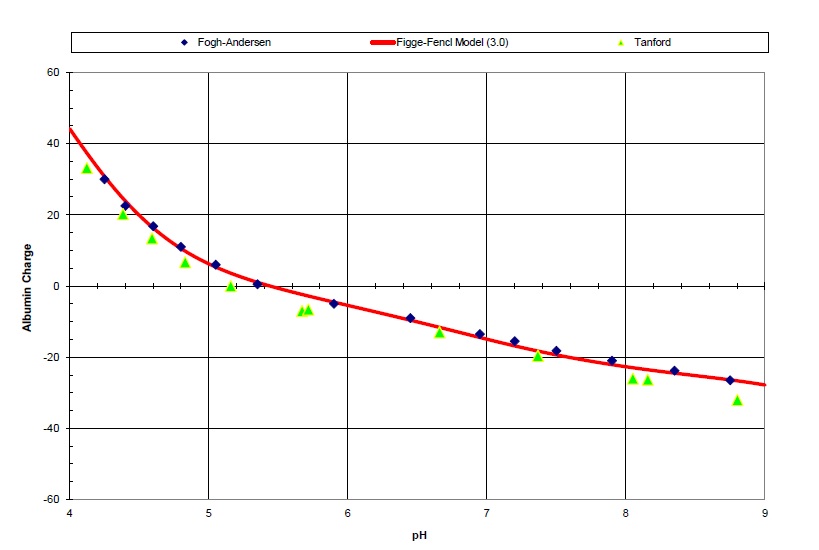

Figure 1. Hypothetical titration curve (red curve) of human serum albumin at 37 degrees Celsius and ionic strength of approximately 0.15 over the pH range 4 to 9, as predicted by the Figge-Fencl quantitative physicochemical model (version 3.0). This curve shows the intrinsic charge carried by the albumin molecule at a given pH (albumin's own charge) and does not account for charges introduced by complex formation with any inorganic ions such as calcium or chloride. Experimental data cover the pH range of 6.85 to 7.94. Calcium concentration ranges from 1.6 to 2.5 mmol / L. Data points outside of the experimental range represent a model-generated extrapolation. The predicted charge displayed by albumin is given in Eq / mol albumin. The predicted titration curve is plotted along with experimental data points of Fogh-Andersen, Bjerrum and Siggaard-Andersen, Clinical Chemistry, 1993; 39: 48-52 (blue diamonds). [ Full text is available online ]. These experimental data points of Fogh-Andersen and colleagues give the intrinsic charge carried by human albumin (albumin's own charge) at 37 degrees C in the presence of physiologic concentrations of NaCl, KCl, and CaCl2. Note the close agreement between the titration curve predicted by the Figge-Fencl model (version 3.0) and the experimental data points of Fogh-Andersen and colleagues. The predicted isoelectric point (pI) as calculated by the Figge-Fencl model (version 3.0) is: pI = 5.44. The isoelectric point is the pH at which albumin's intrinsic charge is zero. This value is in excellent agreement with the experimental data of Fogh-Andersen and colleagues who published an isoelectric point of pI = 5.4.

The data points of Tanford, one of the earliest published titration curves of human albumin at 37.8 degrees Celsius, are also plotted (green triangles). The original Tanford data, published in the Journal of the American Chemical Society, 1950; 72: 441-451, have been adjusted using a molecular weight of 66,500 for albumin.


Linear Regression Equation.

A least-squares linear regression fit to the Figge-Fencl quantitative physicochemical model (version 3.0) over the pH range of 6.90 to 7.90 yields the following equation for the charge displayed by albumin:

[ Albx- ] = -10 x [ Albumin ] x ( 0.123 x pH - 0.631 );

where [ Albx- ] is in mEq / L and [ Albumin ] is in g / dL. Therefore, at pH 7.40, the charge contributed by 4.40 g / dL of albumin is approximately -12.3 mEq / L.

A least-squares fit to the Figge-Mydosh-Fencl model over the stated range of pH values yields the same equation:

[ Albx- ] = -10 x [ Albumin ] x ( 0.123 x pH - 0.631 ).


Reference Data Set

Intrinsic charge displayed by human serum albumin as a function of pH, as predicted by the Figge-Fencl quantitative physicochemical model (version 3.0) and the Figge-Mydosh-Fencl model.

pH, Figge-Fencl model 3.0: Alb- (mEq / g), Alb- (Eq / mol), Figge-Mydosh-Fencl model: Alb- (mEq / g), Alb- (Eq / mol)

DATA 4.00, 0.664547875897672, 44.1924337471952, 0.659798183785891, 43.8765792217617
DATA 4.01, 0.656055215637373, 43.6276718398853, 0.651205819166493, 43.3051869745718
DATA 4.02, 0.647585417370334, 43.0644302551272, 0.642614842979165, 42.7338870581145
DATA 4.03, 0.639140535752526, 42.502845627543, 0.634027470832275, 42.1628268103463
DATA 4.04, 0.630722597989537, 41.9430527663042, 0.625445913391591, 41.5921532405408
DATA 4.05, 0.622333601865159, 41.385184524033, 0.616872374028479, 41.0220128728939
DATA 4.06, 0.613975513832628, 40.8293716698697, 0.608309046484196, 40.452551591199
DATA 4.07, 0.605650267172146, 40.2757427669477, 0.599758112555508, 39.8839144849413
DATA 4.08, 0.59735976021809, 39.724424054503, 0.591221739806817, 39.3162456971534
DATA 4.09, 0.589105854659042, 39.1755393348263, 0.582702079313825, 38.7496882743693
DATA 4.10, 0.580890373913566, 38.6292098652521, 0.574201263443692, 38.1843840190055
DATA 4.11, 0.57271510158433, 38.0855542553579, 0.565721403676487, 37.6204733444864
DATA 4.12, 0.564581779992956, 37.5446883695316, 0.55726458847256, 37.0580951334252
DATA 4.13, 0.556492108797666, 37.0067252350448, 0.548832881190314, 36.4973865991559
DATA 4.14, 0.548447743695546, 36.4717749557538, 0.540428318058659, 35.9384831509008
DATA 4.15, 0.540450295210952, 35.9399446315283, 0.532052906208222, 35.3815182628467
DATA 4.16, 0.532501327571319, 35.4113382834927, 0.523708621765173, 34.826623347384
DATA 4.17, 0.524602357671328, 34.8860567851433, 0.515397408011305, 34.2739276327518
DATA 4.18, 0.516754854126157, 34.3641977993894, 0.507121173613752, 33.7235580453145
DATA 4.19, 0.508960236414217, 33.8458557215454, 0.498881790927504, 33.175639096679
DATA 4.20, 0.501219874109561, 33.3311216282858, 0.49068109437359, 32.6302927758437
DATA 4.21, 0.493535086203835, 32.820083232555, 0.482520878895557, 32.0876384465545
DATA 4.22, 0.485907140517442, 32.3128248444099, 0.474402898496598, 31.5477927500237
DATA 4.23, 0.478337253199309, 31.809427337754, 0.466328864859406, 31.0108695131505
DATA 4.24, 0.47082658831441, 31.3099681229083, 0.458300446050555, 30.4769796623619
DATA 4.25, 0.463376257517998, 30.8145211249468, 0.450319265310923, 29.9462311431764
DATA 4.26, 0.455987319815231, 30.3231567677129, 0.442386899933409, 29.4187288455717
DATA 4.27, 0.44866078140474, 29.8359419634152, 0.434504880228903, 28.8945745352221
DATA 4.28, 0.441397595604407, 29.352940107693, 0.426674688581205, 28.3738667906501
DATA 4.29, 0.434198662857528, 28.8742110800256, 0.4188977585913, 27.8567009463214
DATA 4.30, 0.427064830817276, 28.3998112493488, 0.411175474311152, 27.3431690416916
DATA 4.31, 0.419996894507293, 27.929793484735, 0.403509169566901, 26.8333597761989
DATA 4.32, 0.412995596556061, 27.464207170978, 0.395900127371099, 26.3273584701781
DATA 4.33, 0.406061627502556, 27.00309822892, 0.38834957942338, 25.8252470316547
DATA 4.34, 0.39919562617061, 26.5465091403456, 0.380858705698707, 25.327103928964
DATA 4.35, 0.392398180109268, 26.0944789772663, 0.373428634122133, 24.8330041691218
DATA 4.36, 0.385669826096336, 25.6470434354063, 0.366060440328765, 24.3430192818629
DATA 4.37, 0.379011050702259, 25.2042348717002, 0.358755147507462, 23.8572173092462
DATA 4.38, 0.372422290911381, 24.7660823456069, 0.351513726326526, 23.375662800714
DATA 4.39, 0.365903934797577, 24.3326116640389, 0.344337094939564, 22.898416813481
DATA 4.40, 0.359456322251242, 23.9038454297076, 0.337226119069423, 22.4255369181166
DATA 4.41, 0.353079745754548, 23.4798030926774, 0.330181612168027, 21.9570772091738
DATA 4.42, 0.346774451201882, 23.0605010049252, 0.323204335649738, 21.4930883207076
DATA 4.43, 0.340540638762391, 22.645952477699, 0.316294999195796, 21.0336174465204
DATA 4.44, 0.334378463781514, 22.2361678414707, 0.309454261127183, 20.5787083649577
DATA 4.45, 0.328288037718439, 21.8311545082762, 0.302682728843272, 20.1284014680776
DATA 4.46, 0.322269429116431, 21.4309170362427, 0.295980959323393, 19.6827337950056
DATA 4.47, 0.316322664603002, 21.0354571960996, 0.289349459688501, 19.2417390692853
DATA 4.48, 0.310447729916939, 20.6447740394764, 0.282788687819965, 18.8054477400277
DATA 4.49, 0.304644570959269, 20.2588639687914, 0.276299053032499, 18.3738870266612
DATA 4.50, 0.298913094865275, 19.8777208085408, 0.269880916798185, 17.9470809670793
DATA 4.51, 0.293253171094745, 19.5013358778006, 0.263534593518546, 17.5250504689833
DATA 4.52, 0.287664632537725, 19.1296980637587, 0.257260351341556, 17.1078133642135
DATA 4.53, 0.282147276633092, 18.7627938961006, 0.251058413020519, 16.6953844658645
DATA 4.54, 0.276700866497367, 18.4006076220749, 0.244928956811727, 16.2877756279798
DATA 4.55, 0.271325132061258, 18.0431212820736, 0.238872117407817, 15.8849958076198
DATA 4.56, 0.266019771211522, 17.6903147855662, 0.232887986903793, 15.4870511291023
DATA 4.57, 0.260784450935819, 17.3421659872319, 0.226976615792694, 15.0939449502141
DATA 4.58, 0.255618808468328, 16.9986507631438, 0.221138013987934, 14.7056779301976
DATA 4.59, 0.250522452433999, 16.6597430868609, 0.2153721518694, 14.3222480993151
DATA 4.60, 0.245494963989401, 16.3254151052951, 0.209678961350433, 13.9436509298038
DATA 4.61, 0.240535897958239, 15.9956372142229, 0.204058336962901, 13.5698794080329
DATA 4.62, 0.235644783959712, 15.6703781333209, 0.19851013695763, 13.2009241076824
DATA 4.63, 0.230821127527978, 15.3496049806106, 0.19303418441753, 12.8367732637657
DATA 4.64, 0.226064411221101, 15.0332833462032, 0.187630268380858, 12.477412847327
DATA 4.65, 0.221374095717962, 14.7213773652445, 0.182298144972112, 12.1228266406454
DATA 4.66, 0.216749620901708, 14.4138497899636, 0.177037538538168, 11.7729963127882
DATA 4.67, 0.212190406928412, 14.1106620607394, 0.17184814278734, 11.4279014953581
DATA 4.68, 0.207695855279739, 13.8117743761027, 0.166729621929164, 11.0875198582894
DATA 4.69, 0.203265349798465, 13.5171457615979, 0.161681611812772, 10.7518271855493
DATA 4.70, 0.198898257705854, 13.2267341374393, 0.15670372106186, 10.4207974506137
DATA 4.71, 0.194593930599933, 12.9404963848955, 0.151795532204314, 10.0944028915869
DATA 4.72, 0.190351705433831, 12.6583884113498, 0.14695660279469, 9.7726140858469
DATA 4.73, 0.186170905473439, 12.3803652139837, 0.142186466527831, 9.45540002410075
DATA 4.74, 0.182050841233704, 12.1063809420413, 0.137484634342006, 9.14272818374342
DATA 4.75, 0.177990811393001, 11.8363889576345, 0.132850595510069, 8.8345646014196
DATA 4.76, 0.173990103685056, 11.5703418950562, 0.12828381871721, 8.53087394469446
DATA 4.77, 0.170047995768023, 11.3081917185735, 0.123783753124008, 8.23161958274656
DATA 4.78, 0.166163756070348, 11.0498897786781, 0.119349829413558, 7.93676365600158
DATA 4.79, 0.162336644613163, 10.7953868667754, 0.114981460821555, 7.64626714463343
DATA 4.80, 0.158565913808992, 10.544633268298, 0.110678044148334, 7.3600899358642
DATA 4.81, 0.154850809236631, 10.2975788142359, 0.106438960751894, 7.07819089000097
DATA 4.82, 0.151190570392137, 10.0541729310771, 0.102263577521121, 6.80052790515457
DATA 4.83, 0.147584431415897, 9.81436468915715, 9.81512478284101E-02, 6.52705798058927
DATA 4.84, 0.144031621795818, 9.57810284942186, 9.41013124610449E-02, 6.25773727865948
DATA 4.85, 0.140531367046731, 9.3453359086076, 9.01131005307476E-02, 5.99252118529471
DATA 4.86, 0.137082889366155, 9.11601214284929, 8.61859303608861E-02, 5.73136436899892
DATA 4.87, 0.1336854082666, 8.89007964972892, 8.23191103509162E-02, 5.47422083833593
DATA 4.88, 0.130338141184645, 8.66748638877888, 7.85119398176951E-02, 5.22104399787672
DATA 4.89, 0.12704030406706, 8.44818022045948, 7.47637098133885E-02, 4.97178670259033
DATA 4.90, 0.123791111934282, 8.23210894362974, 7.10737039197441E-02, 4.72640131066298
DATA 4.91, 0.120589779421592, 8.01922033153586, 0.067441199018581, 4.48483973473564
DATA 4.92, 0.117435521298343, 7.80946216633979, 6.38654660383939E-02, 4.24705349155319
DATA 4.93, 0.114327552965679, 7.60278227221763, 6.03457706770368E-02, 4.01299375002294
DATA 4.94, 0.11126509093313, 7.39912854705316, 0.056881374100497, 3.78261137768305
DATA 4.95, 0.10824735327457, 7.19844899275892, 5.34715336178349E-02, 3.55585698558602
DATA 4.96, 0.105273560063968, 7.00069174425389, 5.01155033323827E-02, 3.33268097160345
DATA 4.97, 0.102342933791461, 6.80580509713219, 4.68125347693814E-02, 3.11303356216386
DATA 4.98, 9.94546997602114E-02, 6.61373753405406, 4.35618774802356E-02, 2.89686485243567
DATA 4.99, 9.66080864645931E-02, 6.42443774989544, 4.03627796236349E-02, 2.68412484497172
DATA 5.00, 9.38023259502081E-02, 6.23785467568884, 3.72144885238059E-02, 2.47476348683309
DATA 5.01, 9.10366541562825E-02, 6.05393750139279, 0.034116251206195, 2.26873070521197
DATA 5.02, 8.83103112409688E-02, 5.87263569752443, 3.10673149109321E-02, 2.06597644157698
DATA 5.03, 0.085622541890107, 5.69389903569211, 2.80669275844081E-02, 1.86645068436314
DATA 5.04, 8.29725956099738E-02, 5.51767760806326, 2.51143383493772E-02, 1.67010350023359
DATA 5.05, 8.03597270045858E-02, 5.34392184580495, 2.22087979539669E-02, 1.4768850639388
DATA 5.06, 0.077783196038076, 5.17258253653205, 1.93495592000381E-02, 1.28674568680253
DATA 5.07, 0.075242268282704, 5.00361084079982, 1.65358773513193E-02, 1.09963584386274
DATA 5.08, 7.27362151530224E-02, 4.83695830767599, 1.37670105217916E-02, 0.915506199699143
DATA 5.09, 7.02643141267306E-02, 4.67257688942758, 1.10422200447676E-02, 0.734307632977048
DATA 5.10, 6.78258489527429E-02, 4.5104189553574, 8.36077082316646E-03, 0.55599125974057
DATA 5.11, 6.54201098469769E-02, 4.35043730482396, 5.72193166145691E-03, 0.380508455486884
DATA 5.12, 6.30463936763723E-02, 4.19258517947876, 3.12497557976707E-03, 0.20781087605451
DATA 5.13, 6.07040041316207E-02, 4.03681627475277, 5.69180110657022E-04, 0.037850477358692
DATA 5.14, 5.83922518891012E-02, 3.88308475062523, -1.94617242093806E-03, -0.129420465992381
DATA 5.15, 5.61104547624772E-02, 3.73134524170473, -4.42179463410385E-03, -0.294049343167906
DATA 5.16, 5.38579378444131E-02, 3.58155286665347, -6.85839384416116E-03, -0.456083190636717
DATA 5.17, 5.16340336388459E-02, 3.43366323698325, -9.25667183021956E-03, -0.6155686767096
DATA 5.18, 4.94380821842431E-02, 3.28763246525217, -1.16173246175465E-02, -0.772552087066842
DATA 5.19, 4.72694311682487E-02, 3.14341717268854, -1.39410422742763E-02, -0.927079311239371
DATA 5.20, 4.51274360341087E-02, 3.00097449626823, -1.62285087219561E-02, -1.07919583001008
DATA 5.21, 4.30114600792588E-02, 2.86026209527071, -1.84804015594525E-02, -1.22894670370359
DATA 5.22, 0.040920874546426, 2.72123815733733, -2.06973918997315E-02, -1.37637656133214
DATA 5.23, 3.88550587075915E-02, 2.58386140405484, -2.28801442190544E-02, -1.52152959056712
DATA 5.24, 3.68133999411378E-02, 2.44809109608566, -0.025029316218109, -1.66444952850425
DATA 5.25, 3.47952938024828E-02, 2.31388703786511, -0.027145558694644, -1.80517965319383
DATA 5.26, 3.28001440885001E-02, 2.18120958188525, -2.92295154271475E-02, -1.94376277590531
DATA 5.27, 3.08273628959912E-02, 2.05001963258342, -3.12818230691415E-02, -2.08024123409791
DATA 5.28, 2.88763706744674E-02, 1.92027864985208, -3.33031110536722E-02, -2.2146568850692
DATA 5.29, 2.69465962734817E-02, 1.79194865218653, -3.52940015075799E-02, -2.34705110025406
DATA 5.30, 2.50374769847281E-02, 1.66499221948442, -0.037255109175152, -2.4774647601476
DATA 5.31, 2.31484585791206E-02, 1.53937249551152, -3.91870413507662E-02, -2.60593824982595
DATA 5.32, 2.12789953390315E-02, 1.4150531900456, -4.10903978201533E-02, -2.7325114550402
DATA 5.33, 1.94285500858737E-02, 1.2919985807106, -4.29657708099027E-02, -2.85722375885853
DATA 5.34, 1.75965942031755E-02, 1.17017351451117, -4.48137449448733E-02, -2.98011403883408
DATA 5.35, 1.57826076552956E-02, 1.04954340907716, -4.66348972131546E-02, -3.10122066467478
DATA 5.36, 1.39860790019111E-02, 0.930074253627088, -4.84297969382551E-02, -3.22058149639396
DATA 5.37, 1.22065054083829E-02, 0.811732609657464, -5.01990057581992E-02, -3.33823388292025
DATA 5.38, 1.04433926521148E-02, 0.694485611365634, -5.19430776112304E-02, -3.45421466114682
DATA 5.39, 8.69625512498279E-03, 0.578300965811355, -5.36625587278181E-02, -3.5685601553999
DATA 5.40, 6.96461583192895E-03, 0.463146952823275, -5.53579876286944E-02, -3.68130617730817
DATA 5.41, 5.2480063857673E-03, 0.348992424653525, -5.70298951286448E-02, -3.79248802605488
DATA 5.42, 3.54596699827794E-03, 0.235806805385483, -5.86788043457901E-02, -3.90214048899504
DATA 5.43, 1.85804646762471E-03, 0.123560090097043, -6.03052307161167E-02, -4.01029784262176
DATA 5.44, 1.83802162140096E-04, 1.22228437823164E-02, -6.19096820130052E-02, -4.11699385386485
DATA 5.45, -1.47719999949041E-03, -9.82337999661125E-02, -6.34926583715356E-02, -4.22226178170712
DATA 5.46, -3.12538557162376E-03, -0.20783814051298, -6.50546523173426E-02, -4.32613437910328
DATA 5.47, -4.7611716086141E-03, -0.316617911972837, -6.65961487998154E-02, -4.42864389518772
DATA 5.48, -6.38496669531368E-03, -0.42460028523836, -6.81176252294314E-02, -4.52982207775719
DATA 5.49, -7.99717098111903E-03, -0.531811870244416, -0.069619551519036, -4.62970017601589
DATA 5.50, -9.59817621754535E-03, -0.638278718466766, -7.11023901288769E-02, -4.72830894357031
DATA 5.51, -1.11883657993434E-02, -0.744026325656339, -7.25665961152168E-02, -4.82567864166192
DATA 5.52, -1.27681148091486E-02, -0.849079634808381, -7.40126171823486E-02, -4.92183904262618
DATA 5.53, -0.014337790065672, -0.953463039367191, -7.54408937378487E-02, -5.01681943356694
DATA 5.54, -1.58977501754307E-02, -1.05720038666614, -7.68518589509095E-02, -5.11064862023548
DATA 5.55, -1.74483455880284E-02, -1.16031498160389, -7.82459388135931E-02, -5.20335493110394
DATA 5.56, -0.018989918654985, -1.2628295905565, -7.96235522048597E-02, -5.29496622162317
DATA 5.57, -2.05228036921126E-02, -1.36476644552549, -8.09851109572248E-02, -5.38550987865545
DATA 5.58, -2.20473270454462E-02, -1.46614724852217, -8.23310199259068E-02, -5.4750128250728
DATA 5.59, -2.35638071607189E-02, -1.56699317618781, -8.36616770603242E-02, -5.56350152451156
DATA 5.60, -2.50725546563753E-02, -1.66732488464896, -8.49774734778146E-02, -5.65100198627467
DATA 5.61, -2.65738724001199E-02, -1.76716251460797, -8.62787935394469E-02, -5.73753977037322
DATA 5.62, -2.80680555889714E-02, -1.8665256966666, -8.75660149277878E-02, -5.82313999269789
DATA 5.63, -2.95553918328215E-02, -1.96543355688263, -8.88395087265237E-02, -5.90782733031383
DATA 5.64, -0.031036161241455, -2.06390472255676, -9.00996395017836E-02, -5.99162602686861
DATA 5.65, -3.25106365150152E-02, -2.16195732824851, -9.13467653850752E-02, -6.0745598981075
DATA 5.66, -3.39790830378675E-02, -2.25960902201819, -9.25812381576912E-02, -6.15665233748646
DATA 5.67, -3.54417589758297E-02, -2.35687697189268, -9.38034033364904E-02, -6.23792632187661
DATA 5.68, -3.68989153767018E-02, -2.45377787255067, -9.50136002609184E-02, -6.31840441735107
DATA 5.69, -3.83507962740596E-02, -2.55032795222496, -9.62121621811738E-02, -6.39810878504806
DATA 5.70, -3.97976387942279E-02, -2.64654297981615, -9.73994163473933E-02, -6.47706118710165
DATA 5.71, -4.12396732663834E-02, -2.7424382722145, -9.85756840997521E-02, -6.55528299263351
DATA 5.72, -0.042677123335689, -2.83802870182332, -9.97412809593669E-02, -6.6327951837979
DATA 5.73, -4.41102060793857E-02, -2.93332870427915, -0.10089651671989, -6.70961836187267
DATA 5.74, -4.55391321257448E-02, -3.02835228636203, -0.102041695539689, -6.78577275338929
DATA 5.75, -4.69641057757833E-02, -3.12311303408959, -0.103177116034503, -6.86127821629446
DATA 5.76, -4.83853251276219E-02, -3.21762412098686, -0.10430307137047, -6.93615424613627
DATA 5.77, -4.98029822033866E-02, -3.31189831652521, -0.105419849357412, -7.01041998226789
DATA 5.78, -5.12172630785163E-02, -3.40594799472134, -0.106527732542282, -7.08409421406176
DATA 5.79, -5.26283480133449E-02, -3.49978514288743, -0.107626998302666, -7.15719538712727
DATA 5.80, -5.40364115868337E-02, -3.59342137052444, -0.108717918940229, -7.22974160952525
DATA 5.81, -5.54416228322854E-02, -3.68686791834698, -0.109800761774016, -7.30175065797204
DATA 5.82, -5.68441453749072E-02, -3.78013566743133, -0.110875789233492, -7.37323998402723
DATA 5.83, -5.82441375710459E-02, -3.87323514847455, -0.111943258951238, -7.44422672025732
DATA 5.84, -5.96417526489385E-02, -3.96617655115441, -0.113003423855185, -7.51472768636982
DATA 5.85, -6.10371388507941E-02, -4.05896973357781, -0.114056532260312, -7.58475939531075
DATA 5.86, -6.24304395760398E-02, -4.15162423180665, -0.115102827959691, -7.65433805931944
DATA 5.87, -6.38217935255234E-02, -4.24414926944731, -0.116142550314799, -7.72347959593412
DATA 5.88, -6.52113348464972E-02, -4.33655376729206, -0.117175934345007, -7.79219963394297
DATA 5.89, -6.65991932781708E-02, -4.42884635299836, -0.118203210816146, -7.86051351927369
DATA 5.90, -6.79854942976339E-02, -4.52103537079266, -0.119224606328071, -7.92843632081673
DATA 5.91, -6.93703592659294E-02, -4.61312889118431, -0.12024034340114, -7.99598283617578
DATA 5.92, -7.07539055740703E-02, -4.70513472067567, -0.121250640561515, -8.06316759734077
DATA 5.93, -0.072136246788763, -4.79706041145274, -0.122255712425225, -8.13000487627747
DATA 5.94, -7.35174927976248E-02, -4.88891327104205, -0.123255769780888, -8.19650869042902
DATA 5.95, -7.48977499536489E-02, -4.98070037191765, -0.124251019671036, -8.26269280812388
DATA 5.96, -7.62771212186857E-02, -5.0724285610426, -0.125241665471975, -8.32857075388635
DATA 5.97, -7.76557063057025E-02, -5.16410446932922, -0.126227906972093, -8.39415581364418
DATA 5.98, -7.90336018195591E-02, -5.25573452100068, -0.127209940448565, -8.45946103982954
DATA 5.99, -8.04109013960687E-02, -5.34732494283857, -0.128187958742386, -8.52449925636869
DATA 6.00, -8.17876958390778E-02, -5.43888177329867, -0.129162151331685, -8.58928306355704
DATA 6.01, -8.31640732553052E-02, -5.5304108714778, -0.130132704403239, -8.65382484281536
DATA 6.02, -8.45401191866899E-02, -5.62191792591488, -0.13109980092216, -8.71813676132365
DATA 6.03, -8.59159167399756E-02, -5.71340846320838, -0.132063620699696, -8.78223077652981
DATA 6.04, -8.72915467132657E-02, -5.80488785643217, -0.133024340459088, -8.84611864052935
DATA 6.05, -8.86670877192882E-02, -5.89636133333267, -0.13398213389946, -8.90981190431406
DATA 6.06, -9.00426163050911E-02, -5.98783398428856, -0.134937171757685, -8.97332192188607
DATA 6.07, -9.14182070679063E-02, -6.07931077001577, -0.135889621868212, -9.03665985423608
DATA 6.08, -9.27939327669023E-02, -6.17079652899901, -0.136839649220782, -9.09983667318202
DATA 6.09, -9.41698644305622E-02, -6.26229598463239, -0.137787416016055, -9.16286316506765
DATA 6.10, -9.55460714594113E-02, -6.35381375205085, -0.138733081719073, -9.22574993431839
DATA 6.11, -9.69226217238263E-02, -6.44535434463445, -0.139676803110574, -9.28850740685319
DATA 6.12, -9.82995816566599E-02, -6.53692218016788, -0.140618734336105, -9.35114583335097
DATA 6.13, -9.96770163404109E-02, -6.62852158663733, -0.14155902695294, -9.4136752923705
DATA 6.14, -0.101054989588688, -6.72015680764778, -0.142497829974786, -9.47610569332328
DATA 6.15, -0.102433564021704, -6.81183200744329, -0.143435289914252, -9.53844677929775
DATA 6.16, -0.103812801135546, -6.90355127551382, -0.14437155082309, -9.60070812973551
DATA 6.17, -0.105192761364991, -6.99531863077192, -0.145306754330202, -9.66289916295841
DATA 6.18, -0.106573504139614, -7.08713802528431, -0.146241039677397, -9.7250291385469
DATA 6.19, -0.107955087932968, -7.17901334754235, -0.14717454375293, -9.78710715956982
DATA 6.20, -0.109337570304628, -7.27094842525775, -0.148107401122794, -9.84914217466577
DATA 6.21, -0.11072100793487, -7.36294702766885, -0.149039744059801, -9.91114297997675
DATA 6.22, -0.112105456651812, -7.45501286734553, -0.149971702570454, -9.9731182209352
DATA 6.23, -0.11349097145083, -7.54714960148019, -0.150903404419623, -10.0350763939049
DATA 6.24, -0.114877606506079, -7.63936083265424, -0.151834975153045, -10.0970258476775
DATA 6.25, -0.116265415173991, -7.73165010907039, -0.152766538117678, -10.1589747848256
DATA 6.26, -0.117654449988601, -7.82402092424199, -0.153698214479923, -10.2209312629149
DATA 6.27, -0.119044762648614, -7.9164767161328, -0.154630123241748, -10.2829031955762
DATA 6.28, -0.120436403996106, -8.00902086574105, -0.155562381254744, -10.3448983534405
DATA 6.29, -0.121829423986836, -8.10165669512459, -0.156495103232154, -10.4069243649382
DATA 6.30, -0.123223871652086, -8.19438746486375, -0.157428401758904, -10.4689887169671
DATA 6.31, -0.124619795052073, -8.28721637096284, -0.158362387299687, -10.5310987554292
DATA 6.32, -0.126017241220907, -8.3801465411903, -0.159297168205137, -10.5932616856416
DATA 6.33, -0.127416256103199, -8.47318103086275, -0.160232850716148, -10.6554845726238
DATA 6.34, -0.128816884482364, -8.56632281807721, -0.161169538966396, -10.7177743412653
DATA 6.35, -0.130219169900763, -8.65957479840074, -0.162107334983099, -10.7801377763761
DATA 6.36, -0.131623154571839, -8.75293977902729, -0.1630463386861, -10.8425815226257
DATA 6.37, -0.133028879284439, -8.8464204724152, -0.163986647885317, -10.9051120843736
DATA 6.38, -0.134436383299561, -8.94001948942082, -0.164928358276636, -10.9677358253963
DATA 6.39, -0.135845704239797, -9.03373933194651, -0.165871563436316, -11.030458968515
DATA 6.40, -0.137256877971793, -9.12758238512424, -0.166816354813977, -11.0932875951294
DATA 6.41, -0.138669938482087, -9.22155090905881, -0.167762821724245, -11.1562276446623
DATA 6.42, -0.140084917746727, -9.31564703015733, -0.168711051337149, -11.2192849139204
DATA 6.43, -0.141501845595109, -9.40987273207475, -0.169661128667332, -11.2824650563776
DATA 6.44, -0.142920749568548, -9.50422984630842, -0.170613136562189, -11.3457735813856
DATA 6.45, -0.144341654774089, -9.59872004247689, -0.171567155688998, -11.4092158533183
DATA 6.46, -0.145764583734168, -9.69334481832219, -0.172523264521157, -11.472797090657
DATA 6.47, -0.147189556232729, -9.78810548947646, -0.173481539323621, -11.5365223650208
DATA 6.48, -0.148616589158464, -9.88300317903783, -0.174442054137629, -11.6003966001523
DATA 6.49, -0.150045696345899, -9.97803880700229, -0.17540488076484, -11.6644245708619
DATA 6.50, -0.151476888415062, -10.0732130796016, -0.176370088750979, -11.7286109019401
DATA 6.51, -0.152910172610523, -10.1685264785998, -0.177337745369099, -11.7929600670451
DATA 6.52, -0.154345552640625, -10.2639792506016, -0.178307915602586, -11.857476387572
DATA 6.53, -0.155783028517775, -10.3595713964321, -0.179280662128001, -11.9221640315121
DATA 6.54, -0.15722259640065, -10.4553026606432, -0.180256045297903, -11.9870270123105
DATA 6.55, -0.158664248439259, -10.5511725212107, -0.181234123123749, -12.0520691877293
DATA 6.56, -0.160107972623768, -10.6471801794806, -0.182214951259024, -12.1172942587251
DATA 6.57, -0.161553752638045, -10.74332455043, -0.183198582982691, -12.182705768349
DATA 6.58, -0.163001567718882, -10.8396042533057, -0.184185069183126, -12.2483071006779
DATA 6.59, -0.164451392521853, -10.9360176027032, -0.185174458342631, -12.3141014797849
DATA 6.60, -0.165903196994776, -11.0325626001526, -0.186166796522691, -12.380091968759
DATA 6.61, -0.167356946259744, -11.129236926273, -0.187162127350085, -12.4462814687807
DATA 6.62, -0.168812600504655, -11.2260379335596, -0.188160492003987, -12.5126727182652
DATA 6.63, -0.170270114885186, -11.3229626398648, -0.189161929204204, -12.5792682920796
DATA 6.64, -0.171729439438088, -11.4200077226328, -0.190166475200673, -12.6460706008447
DATA 6.65, -0.173190519006704, -11.5171695139458, -0.191174163764367, -12.7130818903304
DATA 6.66, -0.174653293179495, -11.6144439964364, -0.192185026179733, -12.7803042409522
DATA 6.67, -0.176117696242392, -11.7118268001191, -0.193199091238806, -12.8477395673806
DATA 6.68, -0.17758365714567, -11.8093132001871, -0.194216385237141, -12.9153896182699
DATA 6.69, -0.179051099486025, -11.9068981158207, -0.195236931971686, -12.9832559761171
DATA 6.70, -0.180519941504438, -12.0045761100452, -0.19626075274074, -13.0513400572592
DATA 6.71, -0.181990096100355, -12.1023413906736, -0.197287866346135, -13.119643112018
DATA 6.72, -0.183461470862606, -12.2001878123633, -0.198318289097761, -13.1881662250011
DATA 6.73, -0.184933968117435, -12.2981088798094, -0.199352034820579, -13.2569103155685
DATA 6.74, -0.186407484993885, -12.3960977520933, -0.20038911486424, -13.325876138472
DATA 6.75, -0.187881913506706, -12.4941472481959, -0.201429538115454, -13.3950642846777
DATA 6.76, -0.189357140656852, -12.5922498536806, -0.202473311013209, -13.4644751823784
DATA 6.77, -0.190833048549524, -12.6903977285433, -0.203520437566987, -13.5341090982046
DATA 6.78, -0.192309514529615, -12.7885827162194, -0.204570919378072, -13.6039661386418
DATA 6.79, -0.193786411334306, -12.8867963537313, -0.205624755664089, -13.6740462516619
DATA 6.80, -0.195263607262449, -12.9850298829529, -0.206681943286862, -13.7443492285763
DATA 6.81, -0.19674096636028, -13.0832742629586, -0.207742476783713, -13.8148747061169
DATA 6.82, -0.198218348622879, -13.1815201834215, -0.208806348402293, -13.8856221687525
DATA 6.83, -0.199695610210712, -13.2797580790124, -0.209873548139046, -13.9565909512466
DATA 6.84, -0.201172603680487, -13.3779781447524, -0.210944063781407, -14.0277802414636
DATA 6.85, -0.202649178229431, -13.4761703522572, -0.212017880953793, -14.0991890834272
DATA 6.86, -0.204125179952067, -13.5743244668125, -0.213094983167494, -14.1708163806384
DATA 6.87, -0.205600452108418, -13.6724300652098, -0.214175351874523, -14.2426608996558
DATA 6.88, -0.207074835402533, -13.7704765542684, -0.215258966525484, -14.3147212739447
DATA 6.89, -0.208548168270158, -13.8684531899655, -0.216345804631536, -14.3869960079972
DATA 6.90, -0.210020287174282, -13.9663490970897, -0.217435841830478, -14.4594834817268
DATA 6.91, -0.211491026907283, -14.0641532893343, -0.218529051957024, -14.5321819551421
DATA 6.92, -0.212960220898324, -14.1618546897385, -0.219625407117278, -14.605089573299
DATA 6.93, -0.214427701524624, -14.2594421513875, -0.22072487776745, -14.6782043715355
DATA 6.94, -0.21589330042522, -14.3569044782771, -0.221827432796832, -14.7515242809893
DATA 6.95, -0.217356848815809, -14.4542304462513, -0.222933039615019, -14.8250471343987
DATA 6.96, -0.218818177803265, -14.5514088239171, -0.224041664243405, -14.8987706721864
DATA 6.97, -0.22027711869844, -14.6484283934463, -0.22515327141092, -14.9726925488262
DATA 6.98, -0.221733503325873, -14.7452779711705, -0.226267824653989, -15.0468103394902
DATA 6.99, -0.223187164329047, -14.8419464278816, -0.227385286420692, -15.121121546976
DATA 7.00, -0.224637935469913, -14.9384227087492, -0.228505618179075, -15.1956236089085
DATA 7.01, -0.226085651921396, -15.0346958527728, -0.229628780529563, -15.2703139052159
DATA 7.02, -0.227530150551698, -15.1307550116879, -0.230754733321408, -15.3451897658736
DATA 7.03, -0.228971270199253, -15.2265894682503, -0.231883435773111, -15.4202484789119
DATA 7.04, -0.230408851937278, -15.322188653829, -0.233014846596721, -15.4954872986819
DATA 7.05, -0.231842739326915, -15.4175421652398, -0.234148924125926, -15.5709034543741
DATA 7.06, -0.233272778658081, -15.5126397807624, -0.235285626447835, -15.646494158781
DATA 7.07, -0.234698819177202, -15.607471475284, -0.236424911538324, -15.7222566172986
DATA 7.08, -0.236120713301109, -15.7020274345237, -0.237566737400841, -15.798188037156
DATA 7.09, -0.237538316816462, -15.7962980682947, -0.238711062208521, -15.8742856368666
DATA 7.10, -0.238951489064194, -15.8902740227689, -0.239857844449472, -15.9505466558899
DATA 7.11, -0.240360093108516, -15.9839461917163, -0.241007043075089, -16.0269683644934
DATA 7.12, -0.241763995890169, -16.0773057266963, -0.242158617651216, -16.1035480738059
DATA 7.13, -0.243163068363688, -16.1703440461853, -0.243312528512009, -16.1802831460486
DATA 7.14, -0.244557185618528, -16.2630528436321, -0.244468736916302, -16.2571710049341
DATA 7.15, -0.245946226984019, -16.3554240944373, -0.245627205206301, -16.334209146219
DATA 7.16, -0.247330076118205, -16.4474500618606, -0.246787896968414, -16.4113951483995
DATA 7.17, -0.248708621080687, -16.5391233018657, -0.247950777196017, -16.4887266835351
DATA 7.18, -0.250081754389709, -16.6304366669157, -0.249115812453938, -16.5662015281869
DATA 7.19, -0.251449373063782, -16.7213833087415, -0.250282971044475, -16.6438175744576
DATA 7.20, -0.25281137864822, -16.8119566801066, -0.251452223174705, -16.7215728411179
DATA 7.21, -0.254167677227043, -16.9021505355984, -0.252623541124888, -16.799465484805
DATA 7.22, -0.255518179420756, -16.9919589314803, -0.253796899417717, -16.8774938112782
DATA 7.23, -0.256862800370569, -17.0813762246428, -0.254972274988222, -16.9556562867167
DATA 7.24, -0.258201459709675, -17.1703970706934, -0.256149647354067, -17.0339515490455
DATA 7.25, -0.259534081522278, -17.2590164212315, -0.25732899878604, -17.1123784192717
DATA 7.26, -0.260860594291044, -17.3472295203544, -0.258510314478481, -17.190935912819
DATA 7.27, -0.26218093083374, -17.4350319004437, -0.259693582719446, -17.2696232508432
DATA 7.28, -0.263495028229822, -17.5224193772832, -0.260878795060357, -17.3484398715137
DATA 7.29, -0.264802827737761, -17.6093880445611, -0.262065946484929, -17.4273854412478
DATA 7.30, -0.266104274703911, -17.6959342678101, -0.263255035577137, -17.5064598658796
DATA 7.31, -0.267399318463741, -17.7820546778388, -0.264446064688025, -17.5856633017536
DATA 7.32, -0.268687912236245, -17.8677461637103, -0.26563904010111, -17.6649961667238
DATA 7.33, -0.269970013012343, -17.9530058653208, -0.266833972196209, -17.7444591510479
DATA 7.34, -0.271245581438113, -18.0378311656345, -0.268030875611453, -17.8240532281617
DATA 7.35, -0.272514581693619, -18.1222196826257, -0.26922976940331, -17.9037796653201
DATA 7.36, -0.273776981368159, -18.2061692609826, -0.27043067720441, -17.9836400340933
DATA 7.37, -0.275032751332688, -18.2896779636238, -0.271633627379013, -18.0636362207044
DATA 7.38, -0.276281865610161, -18.3727440630757, -0.272838653175916, -18.1437704361984
DATA 7.39, -0.277524301244539, -18.4553660327618, -0.274045792878655, -18.2240452264306
DATA 7.40, -0.278760038169132, -18.5375425382473, -0.275255089952832, -18.3044634818633
DATA 7.41, -0.279989059074973, -18.6192724284857, -0.276466593190433, -18.3850284471638
DATA 7.42, -0.281211349279823, -18.7005547271083, -0.277680356850983, -18.4657437305904
DATA 7.43, -0.282426896598444, -18.7813886237965, -0.278896440799432, -18.5466133131622
DATA 7.44, -0.28363569121467, -18.8617734657756, -0.280114910640632, -18.627641557602
DATA 7.45, -0.284837725555834, -18.941708749463, -0.28133583785033, -18.7088332170469
DATA 7.46, -0.286032994170012, -19.0211941123058, -0.282559299902555, -18.7901934435199
DATA 7.47, -0.287221493606559, -19.1002293248362, -0.283785380393345, -18.8717277961574
DATA 7.48, -0.288403222300335, -19.1788142829723, -0.285014169160712, -18.9534422491873
DATA 7.49, -0.28957818045999, -19.2569490005893, -0.286245762400824, -19.0353431996548
DATA 7.50, -0.290746369960665, -19.3346336023842, -0.287480262780328, -19.1174374748918
DATA 7.51, -0.291907794241382, -19.4118683170519, -0.288717779544787, -19.1997323397283
DATA 7.52, -0.293062458207385, -19.4886534707911, -0.289958428623215, -19.2822355034438
DATA 7.53, -0.294210368137667, -19.5649894811549, -0.291202332728691, -19.364955126458
DATA 7.54, -0.295351531597861, -19.6408768512578, -0.292449621455046, -19.4478998267606
DATA 7.55, -0.296485957358627, -19.7163161643487, -0.29370043136964, -19.531078686081
DATA 7.56, -0.297613655319688, -19.7913080787593, -0.294954906102241, -19.614501255799
DATA 7.57, -0.29873463643957, -19.8658533232314, -0.296213196430047, -19.6981775625981
DATA 7.58, -0.299848912671104, -19.9399526926284, -0.29747546035887, -19.7821181138648
DATA 7.59, -0.300956496902721, -20.0136070440309, -0.298741863200544, -19.8663339028362
DATA 7.60, -0.30205740290553, -20.0868172932178, -0.300012577646615, -19.9508364134999
DATA 7.61, -0.30315164528615, -20.159584411529, -0.301287783838359, -20.0356376252509
DATA 7.62, -0.304239239445231, -20.2319094231079, -0.302567669433219, -20.120750017309
DATA 7.63, -0.305320201541597, -20.3037934025162, -0.303852429667723, -20.2061865729036
DATA 7.64, -0.306394548461906, -20.3752374727167, -0.305142267416979, -20.2919607832291
DATA 7.65, -0.307462297795696, -20.4462428034138, -0.306437393250818, -20.3780866511794
DATA 7.66, -0.308523467815699, -20.516810609744, -0.307738025486699, -20.4645786948655
DATA 7.67, -0.309578077463248, -20.586942151306, -0.309044390239453, -20.5514519509236
DATA 7.68, -0.310626146338617, -20.656638731518, -0.31035672146798, -20.6387219776207
DATA 7.69, -0.311667694696112, -20.7259016972915, -0.31167526101899, -20.7264048577628
DATA 7.70, -0.312702743443717, -20.7947324390072, -0.313000258667893, -20.8145172014149
DATA 7.71, -0.313731314147088, -20.8631323907814, -0.314331972156954, -20.9030761484374
DATA 7.72, -0.314753429037687, -20.9311030310062, -0.315670667230791, -20.9920993708476
DATA 7.73, -0.315769111024838, -20.9986458831518, -0.317016617669347, -21.0816050750116
DATA 7.74, -0.316778383711472, -21.0657625168129, -0.318370105318411, -21.1716120036743
DATA 7.75, -0.317781271413345, -21.1324545489875, -0.319731420117807, -21.2621394378342
DATA 7.76, -0.318777799181482, -21.1987236455685, -0.32110086012733, -21.3532071984675
DATA 7.77, -0.319767992827626, -21.2645715230372, -0.322478731550528, -21.4448356481101
DATA 7.78, -0.320751878952466, -21.329999950339, -0.323865348756413, -21.5370456923015
DATA 7.79, -0.32172948497637, -21.3950107509286, -0.325261034299185, -21.6298587808958
DATA 7.80, -0.322700839172457, -21.4596058049684, -0.326666118936032, -21.7232969092461
DATA 7.81, -0.323665970701717, -21.5237870516642, -0.328080941643091, -21.8173826192656
DATA 7.82, -0.324624909649997, -21.5875564917248, -0.329505849629614, -21.9121390003693
DATA 7.83, -0.32557768706661, -21.6509161899296, -0.330941198350392, -22.0075896903011
DATA 7.84, -0.326524335004362, -21.7138682777901, -0.332387351516494, -22.1037588758469
DATA 7.85, -0.327464886560787, -21.7764149562923, -0.333844681104337, -22.2006712934384
DATA 7.86, -0.328399375920377, -21.8385584987051, -0.335313567363118, -22.2983522296473
DATA 7.87, -0.329327838397638, -21.9003012534429, -0.336794398820619, -22.3968275215712
DATA 7.88, -0.330250310480747, -21.9616456469697, -0.338287572287396, -22.4961235571119
DATA 7.89, -0.33116682987567, -22.0225941867321, -0.33979349285933, -22.5962672751455
DATA 7.90, -0.332077435550542, -22.083149464111, -0.341312573918524, -22.6972861655818
DATA 7.91, -0.332982167780155, -22.1433141573803, -0.342845237132513, -22.7992082693121
DATA 7.92, -0.33388106819042, -22.2030910346629, -0.34439191245176, -22.902062178042
DATA 7.93, -0.334774179802623, -22.2624829568744, -0.345953038105332, -23.0058770340046
DATA 7.94, -0.335661547077384, -22.3214928806461, -0.34752906059475, -23.1106825295509
DATA 7.95, -0.336543215958168, -22.3801238612182, -0.349120434685871, -23.2165089066105
DATA 7.96, -0.337419233914238, -22.4383790552969, -0.350727623398743, -23.3233869560164
DATA 7.97, -0.338289649982965, -22.4962617238671, -0.352351097995298, -23.4313480166873
DATA 7.98, -0.339154514811377, -22.5537752349566, -0.35399133796478, -23.5404239746579
DATA 7.99, -0.340013880696891, -22.6109230663433, -0.355648831006748, -23.6506472619487
DATA 8.00, -0.340867801627124, -22.6677088082037, -0.357324073011514, -23.7620508552657
DATA 8.01, -0.341716333318753, -22.7241361656971, -0.359017568037848, -23.8746682745169
DATA 8.02, -0.342559533255343, -22.7802089614803, -0.360729828287768, -23.9885335811366
DATA 8.03, -0.343397460724121, -22.8359311381541, -0.362461374078216, -24.1036813762014
DATA 8.04, -0.344230176851641, -22.8913067606341, -0.364212733809424, -24.2201467983267
DATA 8.05, -0.345057744638329, -22.9463400184489, -0.365984443929728, -24.3379655213269
DATA 8.06, -0.345880228991894, -23.001035227961, -0.367777048896612, -24.4571737516247
DATA 8.07, -0.346697696759575, -23.0553968345117, -0.369591101133724, -24.5778082253927
DATA 8.08, -0.347510216759252, -23.1094294144903, -0.371427160983597, -24.6999062054092
DATA 8.09, -0.348317859809406, -23.1631376773255, -0.373285796655797, -24.8235054776105
DATA 8.10, -0.349120698757956, -23.2165264674041, -0.375167584170216, -24.9486443473194
DATA 8.11, -0.34991880850999, -23.2696007659143, -0.377073107295198, -25.0753616351307
DATA 8.12, -0.350712266054417, -23.3223656926187, -0.37900295748018, -25.203696672432
DATA 8.13, -0.351501150489582, -23.3748265075572, -0.38095773378252, -25.3336892965376
DATA 8.14, -0.352285543047877, -23.4269886126838, -0.382938042788174, -25.4653798454136
DATA 8.15, -0.353065527119389, -23.4788575534394, -0.384944498525856, -25.5988091519694
DATA 8.16, -0.353841188274659, -23.5304390202648, -0.386977722374327, -25.7340185378927
DATA 8.17, -0.354612614286571, -23.581738850057, -0.389038342962424, -25.8710498070012
DATA 8.18, -0.35537989515147, -23.6327630275728, -0.391126996061449, -26.0099452380863
DATA 8.19, -0.35614312310953, -23.6835176867837, -0.393244324469504, -26.150747577222
DATA 8.20, -0.356902392664474, -23.7340091121876, -0.395390977887383, -26.293500029511
DATA 8.21, -0.357657800602692, -23.784243740079, -0.397567612785579, -26.438246250241
DATA 8.22, -0.358409446011825, -23.8342281597864, -0.399774892261982, -26.5850303354218
DATA 8.23, -0.359157430298906, -23.8839691148772, -0.402013485889844, -26.7338968116746
DATA 8.24, -0.359901857208108, -23.9334735043392, -0.404284069555545, -26.8848906254438
DATA 8.25, -0.360642832838185, -23.9827483837393, -0.406587325285714, -27.0380571315
DATA 8.26, -0.361380465659672, -24.0318009663682, -0.408923941063244, -27.1934420807057
DATA 8.27, -0.362114866531924, -24.080638624373, -0.41129461063174, -27.3510916070107
DATA 8.28, -0.362846148720062, -24.1292688898841, -0.413700033287912, -27.5110522136462
DATA 8.29, -0.363574427911889, -24.1776994561406, -0.416140913661454, -27.6733707584867
DATA 8.30, -0.364299822234866, -24.2259381786186, -0.418617961481918, -27.8380944385475
DATA 8.31, -0.365022452273191, -24.2739930761672, -0.421131891332102, -28.0052707735848
DATA 8.32, -0.36574244108507, -24.3218723321571, -0.423683422387478, -28.1749475887673
DATA 8.33, -0.366459914220217, -24.3695842956444, -0.426273278141165, -28.3471729963875
DATA 8.34, -0.36717499973768, -24.4171374825557, -0.428902186113961, -28.5219953765784
DATA 8.35, -0.367887828224001, -24.4645405768961, -0.431570877548979, -28.6994633570071
DATA 8.36, -0.368598532811818, -24.5118024319859, -0.434280087090375, -28.8796257915099
DATA 8.37, -0.369307249198906, -24.5589320717273, -0.437030552445724, -29.0625317376407
DATA 8.38, -0.370014115667755, -24.6059386919057, -0.439823014031577, -29.2482304330998
DATA 8.39, -0.370719273105677, -24.6528316615275, -0.442658214601717, -29.4367712710142
DATA 8.40, -0.37142286502553, -24.6996205241977, -0.445536898857714, -29.628203774038
DATA 8.41, -0.372125037587044, -24.7463149995384, -0.448459813041301, -29.8225775672465
DATA 8.42, -0.372825939618823, -24.7929249846517, -0.451427704508177, -30.0199423497937
DATA 8.43, -0.373525722641014, -24.8394605556274, -0.454441321282827, -30.220347865308
DATA 8.44, -0.374224540888684, -24.8859319690975, -0.457501411593977, -30.4238438709995
DATA 8.45, -0.374922551335912, -24.9323496638381, -0.460608723390304, -30.6304801054552
DATA 8.46, -0.375619913720608, -24.9787242624204, -0.463764003836082, -30.8403062550995
DATA 8.47, -0.376316790570069, -25.0250665729096, -0.466967998786418, -31.0533719192968
DATA 8.48, -0.377013347227273, -25.0713875906136, -0.470221452241821, -31.2697265740811
DATA 8.49, -0.377709751877897, -25.1176984998802, -0.473525105781804, -31.4894195344899
DATA 8.50, -0.378406175578079, -25.1640106759423, -0.476879697977323, -31.712499915492
DATA 8.51, -0.379102792282875, -25.2103356868112, -0.480285963781846, -31.9390165914927
DATA 8.52, -0.379799778875429, -25.256685295216, -0.483744633900883, -32.1690181544087
DATA 8.53, -0.380497315196814, -25.3030714605881, -0.487256434139896, -32.4025528703031
DATA 8.54, -0.381195584076526, -25.349506341089, -0.490822084730476, -32.6396686345767
DATA 8.55, -0.381894771363607, -25.3960022956799, -0.494442299634793, -32.8804129257137
DATA 8.56, -0.38259506595835, -25.4425718862302, -0.498117785828319, -33.1248327575832
DATA 8.57, -0.383296659844564, -25.4892278796635, -0.501849242560918, -33.372974630301
DATA 8.58, -0.383999748122354, -25.5359832501365, -0.50563736059642, -33.6248844796619
DATA 8.59, -0.384704529041364, -25.5828511812507, -0.509482821430865, -33.8806076251525
DATA 8.60, -0.385411204034442, -25.6298450682904, -0.513386296489675, -34.1401887165634
DATA 8.61, -0.38611997775168, -25.6769785204867, -0.517348446304055, -34.4036716792197
DATA 8.62, -0.386831058094761, -25.7242653633016, -0.521369919667014, -34.6710996578564
DATA 8.63, -0.387544656251576, -25.7717196407298, -0.525451352769429, -34.942514959167
DATA 8.64, -0.388260986731019, -25.8193556176128, -0.529593368316698, -35.2179589930604
DATA 8.65, -0.388980267397935, -25.8671877819626, -0.533796574626563, -35.4974722126664
DATA 8.66, -0.389702719508121, -25.91523084729, -0.538061564708753, -35.7810940531321
DATA 8.67, -0.390428567743333, -25.9634997549317, -0.542388915327238, -36.0688628692613
DATA 8.68, -0.391158040246218, -26.0120096763735, -0.54677918604588, -36.360815872051
DATA 8.69, -0.39189136865509, -26.0607760155635, -0.551232918258425, -36.6569890641853
DATA 8.70, -0.392628788138494, -26.1098144112098, -0.555750634203816, -36.9574171745538
DATA 8.71, -0.393370537429456, -26.1591407390589, -0.560332835967925, -37.262133591867
DATA 8.72, -0.394116858859355, -26.2087711141471, -0.564980004472861, -37.5711702974453
DATA 8.73, -0.394867998391317, -26.2587218930226, -0.569692598455137, -37.8845577972666
DATA 8.74, -0.395624205653065, -26.3090096759288, -0.574471053434032, -38.2023250533631
DATA 8.75, -0.396385733969113, -26.359651308946, -0.579315780671598, -38.5244994146613
DATA 8.76, -0.397152840392234, -26.4106638860836, -0.584227166125844, -38.8511065473687
DATA 8.77, -0.397925785734096, -26.4620647513174, -0.58920556939873, -39.1821703650155
DATA 8.78, -0.398704834594974, -26.5138715005658, -0.594251322680669, -39.5177129582645
DATA 8.79, -0.399490255392439, -26.5661019835972, -0.599364729693368, -39.857754524609
DATA 8.80, -0.400282320388929, -26.6187743058638, -0.604546064632872, -40.202313298086
DATA 8.81, -0.401081305718085, -26.6719068302527, -0.609795571114819, -40.5514054791355
DATA 8.82, -0.401887491409766, -26.7255181787494, -0.61511346112395, -40.9050451647427
DATA 8.83, -0.402701161413611, -26.7796272340051, -0.620499913970037, -41.2632442790075
DATA 8.84, -0.403522603621058, -26.8342531408004, -0.625955075252438, -41.6260125042871
DATA 8.85, -0.404352109885695, -26.8894153073987, -0.631479055835601, -41.9933572130675
DATA 8.86, -0.405189976041817, -26.9451334067808, -0.637071930837875, -42.3652834007187
DATA 8.87, -0.406036501921089, -27.0014273777524, -0.642733738636068, -42.7417936192985
DATA 8.88, -0.406891991367173, -27.058317425917, -0.648464479888281, -43.1228879125707
DATA 8.89, -0.407756752248197, -27.1158240245051, -0.654264116577526, -43.5085637524055
DATA 8.90, -0.408631096466939, -27.1739679150515, -0.660132571078807, -43.8988159767407
DATA 8.91, -0.409515339968589, -27.2327701079111, -0.666069725252251, -44.2936367292747
DATA 8.92, -0.410409802745933, -27.2922518826046, -0.672075419565035, -44.6930154010748
DATA 8.93, -0.41131480884186, -27.3524347879837, -0.678149452244793, -45.0969385742788
DATA 8.94, -0.412230686348991, -27.4133406422079, -0.684291578467278, -45.505389968074
DATA 8.95, -0.413157767406321, -27.4749915325203, -0.690501509581007, -45.918350387137
DATA 8.96, -0.414096388192696, -27.5374098148143, -0.696778912371685, -46.335797672717
DATA 8.97, -0.41504688891698, -27.6006181129791, -0.703123408369124, -46.7577066565467
DATA 8.98, -0.416009613804731, -27.6646393180146, -0.709534573199448, -47.1840491177633
DATA 8.99, -0.416984911081241, -27.7294965869025, -0.716011935985264, -47.6147937430201
DATA 9.00, -0.41797313295074, -27.7952133412242, -0.722554978796505, -48.0499060899676

Return to Figge-Fencl Model Version 3.0

Link to Statistical Validation of Model Version 3.0

Link to Online Model Version 3.0 Application

Return to Home Page


Valid HTML 4.0!
